Miata Gauges

Updated September 22, 2016

English Smiths-style gauge faces and turned bezels made for a 1997 Miata M Edition.

MX-5 meets DB5

Front-on view: gas, tach, oil, speedo, and temp.
My one mod so far – a set of English Smiths-style gauge faces, fabricated by Adam at Revlimiter, set inside 3D-printed bezels with Adam's antireflective lenses.

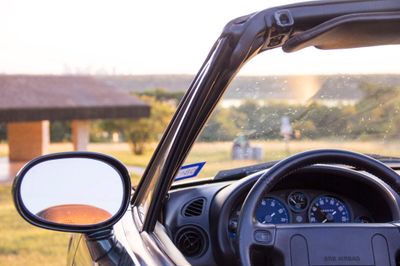

Wide shot from outside the car, showing partial view through the windshield, and a glimpse of the gauges behind the steering wheel.

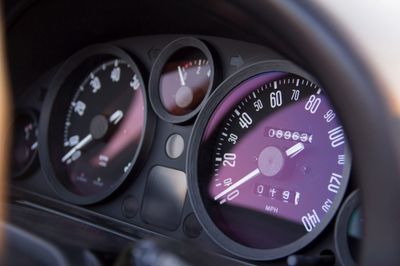

Gauges at an angle.

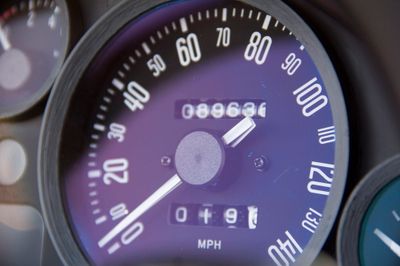

Closeup with reflection off glass showing blue tint of AR coating.

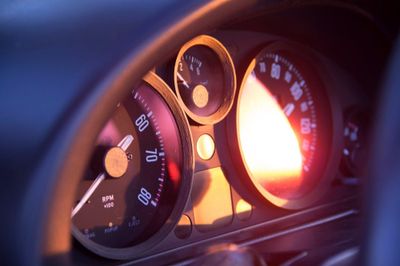

Other angle with sun glinting off, showing detail in the 3D prnting.

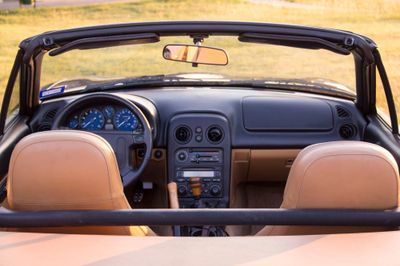

Wide shot from the back of the car and above, like you'd see in a car sales ad.

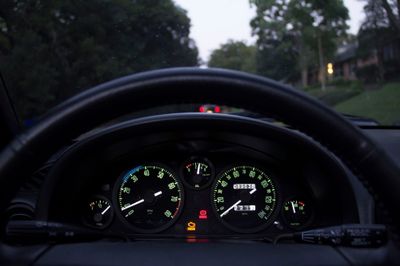

A view at dusk, showing the lighting behind.
New LED lighting, and the rear O2 sensor falling down on the job.
Side view of the car.
1997 Miata M Edition
